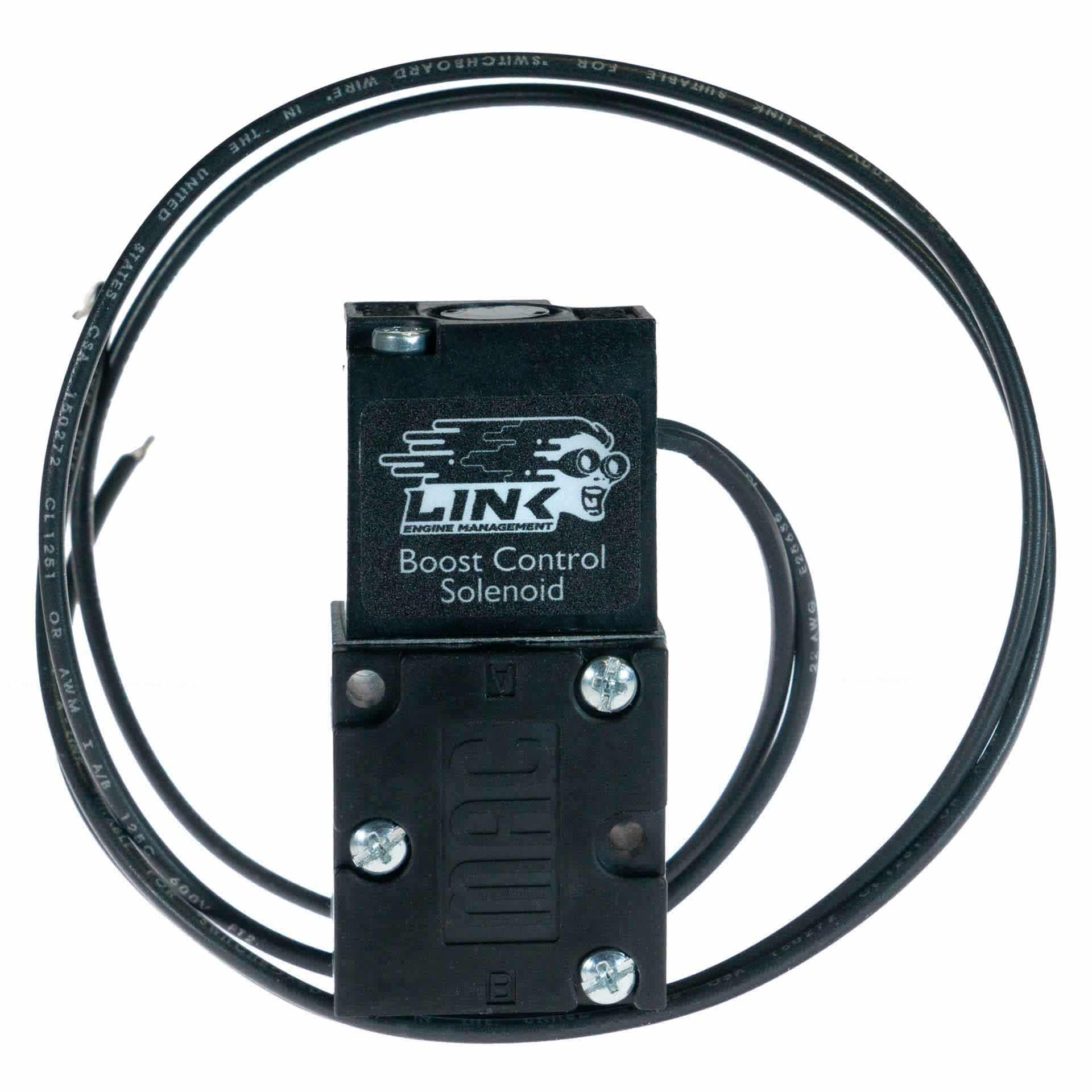

Boost Control Solenoid - 4 Port (4BCS)

Name: Boost Control Solenoid - 4 Port (4BCS)
SKU: 41373651370056

SKU:

availability: Many in stock

$239.06
Additional charges will be calculated at checkout based on your delivery address.

Quantity

Subtotal: $239.06

Quantity must be 1 or more

1 customers are viewing this product

Boost Control Solenoid - 4 Port (4BCS)

Description
Shipping + Returns

Description

Details Thinking of turning up the boost to max? Then this 4 port boost control solenoid is perfect. It allows for precise boost control of up to 120PSI.4 port Boost control soldenoids are commonly used for big boost applications, boost levels can be raised as high as 6-7 times the spring pressure of the wastegate and they allow you to use lower wastegate spring pressures for more precise boost control when launching. Particularly useful in high power traction limited situations where you might want low boost in low gears and higher boost in high gears. Features: Up to 120PSI Compatible with all Link ECU’s Can be used with single or multiple wastegates Fast and consistent response times High shifting forcesMAC 45 series – Rugged, reliable and long operational life Short stroke, high flow Balanced poppet, immune to variations of pressureWe recommend starting with a PWM Frequency of 25Hz for this Boost control solenoid. A detailed description of setting up boost control can be found in the help file within the PC Link software which is available for free download. Specifications: MAC 45 series120 PSI max1/8” BSPPL12 VDC (5.4W) 18” (45cm) coil leads Includes 4 x 1/8” BSP hose tail fittings for easy connection

A 3-port solenoid is typically used for simpler open or closed-loop boost control setups, while a 4-port solenoid supports more advanced control strategies including boost control on both the wastegate's top and bottom ports. This wiring or connector item is genuine Link Engine Management stock, supplied by AutoCentre Parts New Zealand to support clean, reliable installations of Link ECUs, sensors and accessories. Using the correct genuine connectors and terminals helps avoid poor connections and wiring faults down the line, so we recommend sourcing these alongside your other Link ECU componentry. AutoCentre Parts stocks the wider range of Link ECUs, sensors and looms, so you can source your full engine management wiring solution from one supplier.
