Davies Craig, BLACK EWP150 Kit, 12V 150LPM, Electric Water Pump, Suit Big HP Engine, DC-8065

Muscle up your engine cooling system with the Davies Craig EWP® 150 Alloy Electric Water Pump. Like all EWPs, this advanced unit is designed for remote mounting in the engine bay, ideal for higher horsepower, turbocharged, supercharged, and ‘worked’ engines that generate excessive heat.

The EWP®150 alloy unit features -AN16 (12) internal inlet and outlet threads, ensuring a clean, tight screw-in fitting. This rugged, high-flow electric water pump is designed to complement or replace the engine’s existing mechanical water pump. As an essential performance accessory, it increases power to your vehicle’s drive wheels and improves coolant temperature control.

Suitable for Engines:

• 5.0L or greater (Standard)

• Modified Engines

• Supercharged/Turbo Engines

• Drag Racing, Drifting, and Speedway Vehicles

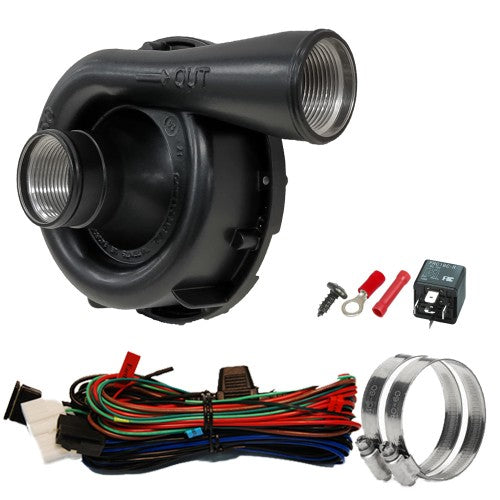

Contents:

• EWP150 Pump (12V) x1

• Hardware Bag x1

• Rubber Sleeve (3mm) x2

• Hose Clamps x2

• EWP Basic Pump Loom x1

• EWP Universal Instructions x1

Technical Specifications:

• Voltage: 12 Volt Pump

• Operating Voltage: 3V DC to 15V DC

• Maximum Current: 10A @ 13V

• Flow Rate (Max): 150 L/min (39.63 US gal/min) @ 13V DC

• Operating Temperature: -40° to 130°C (-40° to 266°F)

• Pump Design: Clockwise centrifugal with volute chamber

• Pump Weight: 1,170 grams (2.6 lbs)

• Pump Material: Aluminium (Powder Coated)

• Burst Pressure: 500 kPa (72.5 psi)

• Seal: Ceramic face seal

• Self-Priming: No, none of our pumps are self-priming

• Fits Hose Sizes: 35mm to 51mm (1⅜” to 2”) Inlet & Outlet -16AN (12)

• Push-On Fitting Size: [Specify fitting size here]

Digital Controller (Sold Separately):

When combined with the LCD EWP®/Fan Digital Controller (Part #8002 or Combo #8970), this system will manage both the EWP® and Thermatic® fan operation. The Digital Controller adjusts the speed of the EWP® based on the engine’s coolant temperature, with multiple temperature settings available for either maximum power or fuel efficiency.

• Thermatic® Fan Activation: Automatically activates once the engine coolant rises 3°C (5.4°F) above the set target temperature.

• Post-Shutdown Operation: Runs the EWP® for three minutes (or until the temperature drops 10°C / 14°F below the set temperature), eliminating heat soak and extending engine life.

The EWP®80 Digital Controller Combo is supplied as a DIY kit, complete with everything needed for installation, including easy-to-follow instructions.
