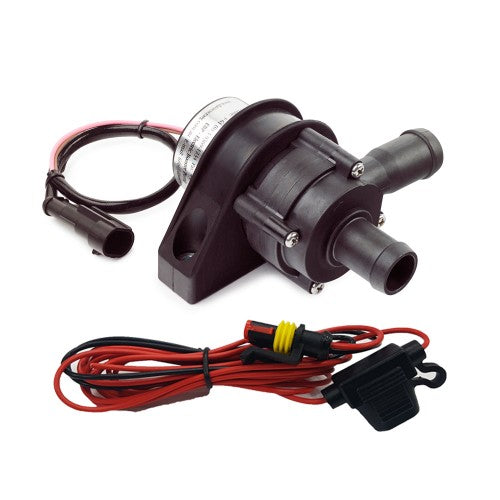

Davies Craig EBP23, 12V Electric Booster Pump, 23LPM, (Pump Only) DC-9051

The Davies Craig EBP23 12V Brushless High-Flow Water Pump is a versatile magnetically driven pump designed to provide efficient fluid circulation across a variety of applications. With a flow rate of 23L/min (6.08 gallons per minute), this brushless pump operates without brushes, ensuring maintenance-free performance with no shaft seals required. It is ideal for applications such as LPG vehicles, heater boosters, liquid-cooled motorcycle engines, and solar pump systems, among others.

The EBP23 is designed to complement your existing Davies Craig EWP (Electric Water Pump) or belt-driven mechanical water pump, enhancing cooling efficiency and engine performance. It can circulate coolant around the engine head, block, and by-pass independently of engine speed, making it perfect for maintaining constant cooling. The EBP23 can also be set to run after the engine has shut down, preventing heat soak and extending engine life.

Key Features:

• Brushless, Magnetically Driven – No wear on brushes and no seals required for longer life.

• High Flow Rate – 23L/min (6 gal/min) for effective fluid circulation.

• Self-Priming: No – designed to run at engine speed.

• Versatile Applications – Suitable for LPG vehicles, heater boosters, motorcycles, go-karts, and marine operations.

• Prevents Heat Soak – Can be set to run after engine shut down for continued coolant circulation.

• Compact Design – Ideal for tight spaces and easy integration into existing systems.

• Warranty: 1 year

Specifications:

• Operating Voltage: 9V to 15V DC

• Max Current Draw: 1.1 Amps

• Pump Design: Recirculating Centrifugal

• Operating Temperature: -40°C to +120°C (-40°F to 266°F)

• Burst Pressure: 250 kPa (36 PSI)

• Flow Rate: 23L/min (6.08 gal/min)

• Head Pumping Pressure: 0.25 Bar (3.62 PSI)

• Max Head: 2.2m

• Weight: 364g (0.8 lbs)

• Self-Priming: No

Applications:

• LPG Vehicles – Prevent LPG injector icing and improve engine temperature control.

• Heater Booster Pump – Enhance heater performance during vehicle operation, and extend heater use when the engine is off (with ignition on).

• Liquid-Cooled Motorcycle Engines – Provides independent cooling, enhancing engine performance at all speeds.

• Multi-Purpose Pump – Ideal for irrigation, solar pump applications, camping, go-karts, and marine use.
