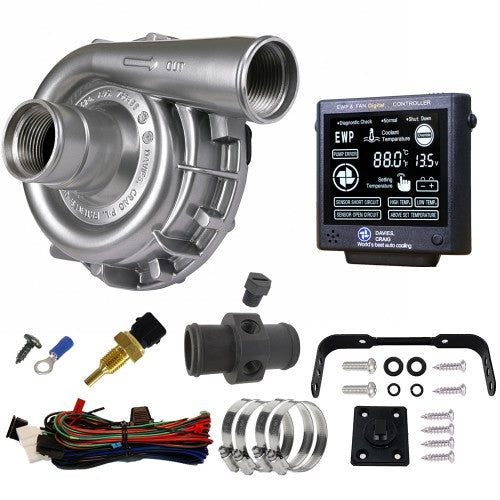

Davies Craig EWP115 Alloy Combo – 12V 115LPM Electric Water Pump & Controller, Suit 2.0-3.5L, DC-8950

Take total control of your engine cooling with the Davies Craig EWP®115 Alloy Electric Water Pump and LCD EWP®/Fan Digital Controller. The Digital Controller also manages the operation of your Thermatic® Fan, ensuring optimal engine temperature at all times.

The EWP®115 (115 litres per minute) is suitable for small, medium, large, high-performance, and 4WD vehicles with engines up to 2.0L - 3.5L.

Technical Specifications - EWP®115:

• Operating Voltage: 3V DC to 15V DC

• Maximum Current: 10A @ 13V

• Flow Rate (Max): 115 L/min (30.38 US gal/min) @ 13V DC

• Operating Temperature: -40° to 130°C (-40° to 266°F)

• Pump Design: Clockwise centrifugal with volute chamber

• Pump Weight: 920 grams (2.3 lbs)

• Pump Material: Aluminium (Powder Coated)

• Burst Pressure: 500 kPa (72.5 psi)

• Seal: Ceramic face seal

• Self-Priming: No, none of our pumps are self-priming

• Fits Hose Sizes & Internal Thread: 35mm to 51mm (1.38” to 2”)

Digital Controller Features:

This advanced Digital Controller for cooling fans and Electric Water Pumps (EWP) ensures your cooling system maintains the optimal temperature. The controller is packed with features to enhance engine performance and cooling efficiency.

• LCD Display: Shows the current engine temperature and the required target temperature (user-settable)

• Status Indicators: Symbols indicate when either the cooling fans or pump are in operation

• Audible Alarms: Alerts if the set temperature exceeds by 10°C or if the temperature fails to reach 40°C within 5 minutes of startup. Also sounds an alarm if the temperature exceeds 100°C.

• Quick Warm-Up: Pulses the pump to warm the engine quickly, then controls the pump speed to maintain the target temperature

• Post-Shutdown Operation: Runs the pump for 3 minutes or until the engine temperature is 10°C below the target, eliminating hot spots after engine shutdown

• User-Settable Temperatures: Factory-set to 85°C, with 9 adjustable temperature settings ranging from 60°C to 100°C. Simply set the temperature and let the controller manage the rest.

The temperature probe can be mounted in the thermostat housing, top radiator hose, or engine block, close to the coolant outlet.
