Davies Craig EWP80 Combo – 12V 80LPM Electric Water Pump & Controller Combo, Up to 2.0L, DC-8907

XRF5323
In stock
$341.05 $322.98
$322.98
customers are viewing this product
Davies Craig EWP80 Combo – 12V 80LPM Electric Water Pump & Controller Combo, Up to 2.0L, DC-8907
Description

The EWP®80 significantly enhances engine cooling control while boosting power and improving fuel economy. By eliminating the parasitic power loss of a belt-driven mechanical water pump, the EWP®80 can provide up to 10kW (13hp) of extra power and increased torque. It is suitable for engines up to 2.0L (standard).

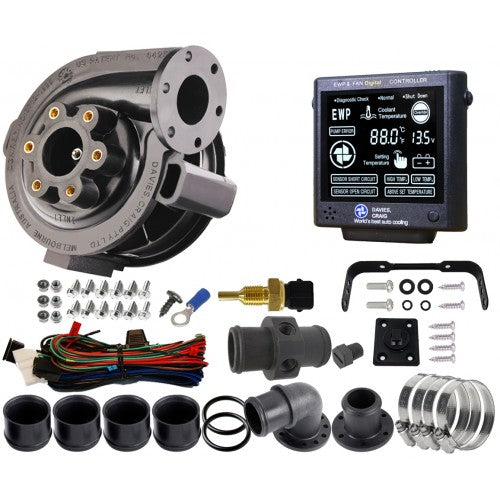

Included with the pump is the LCD Fan Digital Controller, which manages both the EWP® and Thermatic® fan operation. The controller adjusts the speed of the EWP® based on the engine’s coolant temperature, with multiple temperature settings available for either maximum power or fuel efficiency.

The Thermatic® Fan(s) will automatically activate when the engine coolant rises 3°C (5.4°F) above the set temperature. Additionally, the Digital Controller will continue running for three minutes (or until the coolant temperature drops 10°C / 14°F below the set temperature) after engine shutdown, preventing heat soak and extending engine life.

Technical Specifications - EWP®80:

  • Operating Voltage: 3V DC to 15V DC

  • Maximum Current: 7.5A @ 13V

  • Flow Rate (Max): 80 L/min @ 13V DC

  • Operating Temperature: -40° to 130°C (-40° to 266°F)

  • Pump Weight: 900 grams (2.0 lbs)

  • Pump Material: Nylon 66, 30% glass-filled

  • Burst Pressure: 350 kPa (50 psi)

  • Seal: Ceramic face seal

  • Fits Hose Sizes: 32mm to 51mm (1⅜” to 2”)

  • Included Adapters:

    • Elbow Adaptor (35mm, Nylon) x1

    • Straight Adaptor (35mm, Nylon) x1

Technical Specifications - LCD Controller:

  • Voltage Range: 12V DC to 29V DC

  • Display Size (LCD): 64.6mm x 55.6mm

  • Maximum Current: 12A

  • Warning Alarms:

    • High & Low Temperature

    • Above Set Temperature

    • Sensor Short Circuit

    • Pump Error

    • High & Low Voltage

    • Sensor Open Circuit

  • Overrun/Shutdown: -10°C (14°F) below set/target temperature or 3 minutes

  • Indicators: Temperature, power, EWP, test, fan, high & low temp, voltage, above set temperature (with alarm)
