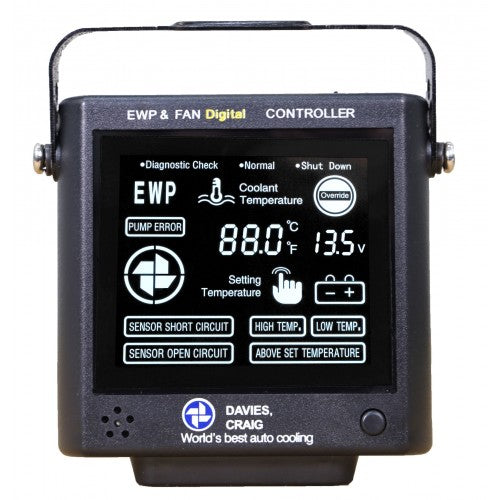

Davies Craig V2 Digital Electric Water Pump & Fan Controller Kit, DC-8002

For optimum control of Davies Craig 12V and 24V Electric Water Pumps, the EWP®/Fan Digital Controller is compatible with:

• EWP®80, EWP®115, EWP®130, EWP®150

• Thermatic® / Electric Fans

• Billet-style Electric Water Pumps

The updated controller features a sleeker design with a rounded appearance and a slimmer profile. The seven-pin plug is now safely tucked away at the base of the controller, ensuring a cleaner and more secure setup.

Key Functions of the EWP®/Fan Digital Controller:

1. Pump Speed Management: Varies the speed of the EWP® based on the coolant temperature.

2. Fan Control: Manages the operation of your electric engine fan.

The controller includes a push-button for locking in a target temperature range from 40°C (104°F) to 110°C (230°F). It is recommended to set the controller to closely match your engine’s existing thermostat temperature.

Additional Benefits:

• Fan Activation: The digital controller automatically activates the electric fan once the engine coolant exceeds +3°C (+5.4°F) above the target temperature.

• Post-Shutdown Operation: The controller allows the EWP® and fan to continue running after ignition shutdown for either 3 minutes or until the temperature drops by -10°C (-14°F) from the set temperature, helping to eliminate heat soak.

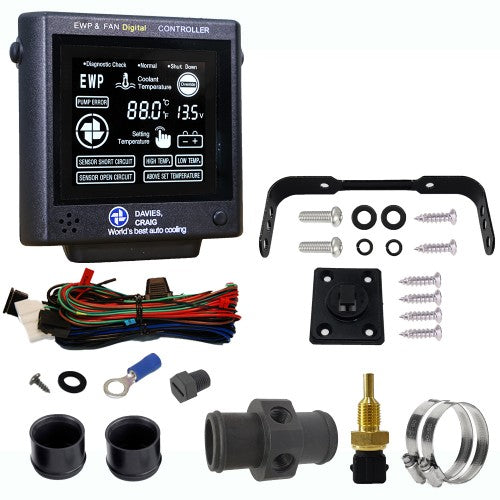

Kit Contents:

• EWP® Digital Controller Assembly x1

• Wiring Harness (includes 10AMP fuse) x1

• Temp Sensor 1/4 NPT x1

• In-Line Adaptor (35mm ends - hose size fitting) x1

• Hose Clamps x2

• Ring Terminal x1

• Rubber Sleeves (3mm) x2

• Mounting Options: Velcro, Nylon Plate, Bracket x3

• Instructions x1

Specifications:

• Voltage Range: 12V DC to 29V DC

• Display Size (LCD): 64.6mm (2.54”) x 55.6mm (2.19”)

• Maximum Current: 12 Amps

• Warning Alarms:

  • High & Low Temperature

  • Above Set Temperature

  • Sensor Short Circuit

  • Pump Error

  • High & Low Voltage

  • Sensor Open Circuit

• Targeted (Set) Temperatures: 40°C (104°F) to 110°C (230°F)

• Memory: Remembers set & targeted temperatures

• Fan Cut-in Temperature: 3°C (5.4°F) above the targeted set temperature

• Controller Type: PCB with microprocessor

• Sensor Type: Thermistor in housing

• Overrun/Shutdown: -10°C (14°F) below set/target temperature or 3 minutes

• Indicators: Temperature, power, EWP, test, fan, high & low temperature, voltage, above set temperature (with alarm)

• Weight: 135 grams

• Dimensions:

  • Length: 98mm (3.8”)

  • Width: 95mm (3.7”)

  • Depth: 25mm (1”)
