Flange Yoke 1410 Series 4x.500 Holes on 4.250BC, 2.000F Pilot Spicer
Description

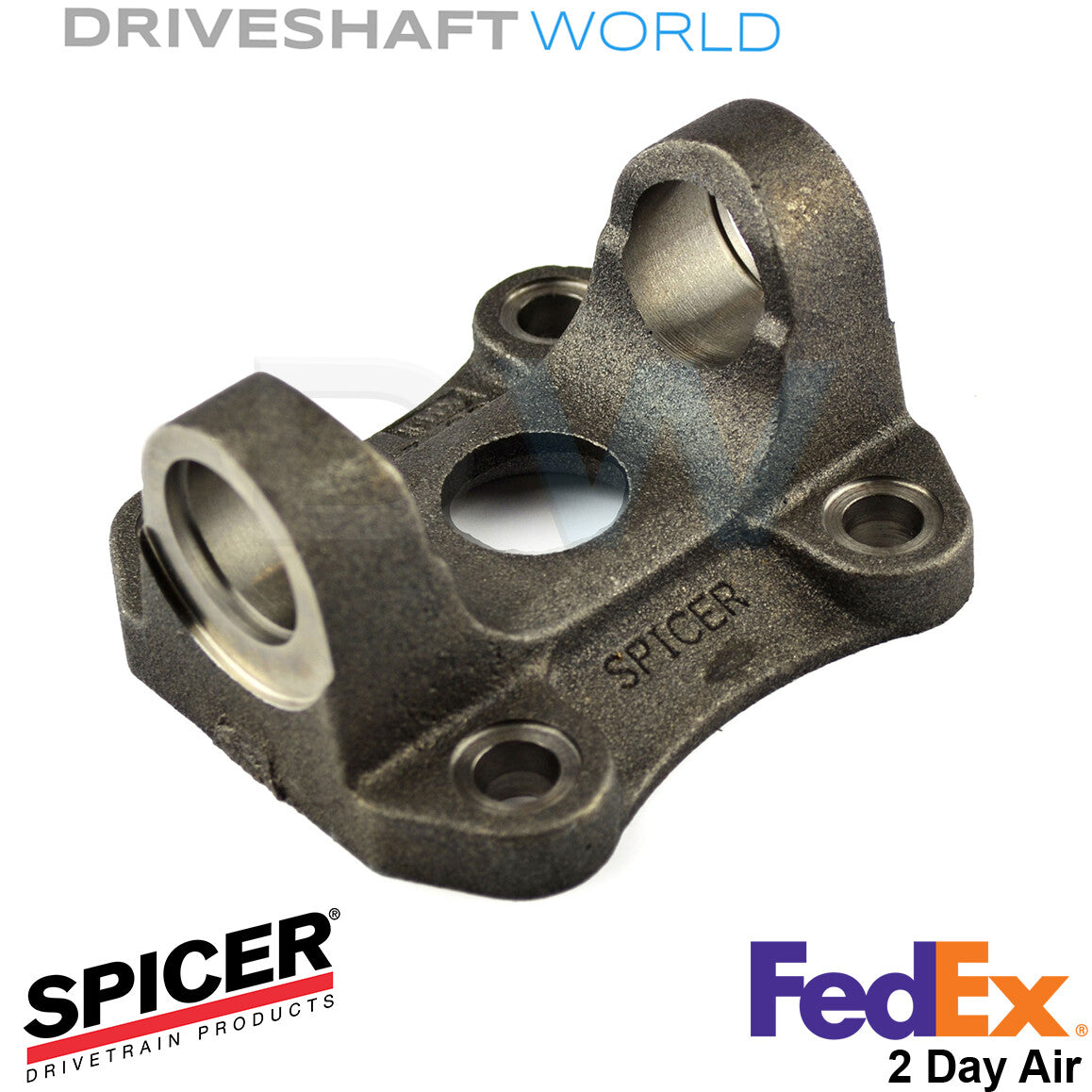

The 3-2-1819 Flange Yoke is a genuine Spicer product made in the USA. This flange yoke is designed for the 1410 series and features 4 holes with a diameter of .500 inches on a bolt circle of 4.250 inches. The pilot diameter is 2.000 inches, and it has a flange face to centerline measurement of 1.620 inches. The outside yoke dimension is 4.438 inches, and the yoke bearing dimension is 1.188 inches.

Specifications

Specification Value
Flange Or Swing Dia. 5.240 In.
Bolt Circle Dia. 4.250 In.
Bolt Hole Dia. .500 - DRILLED
Number Of Bolt Holes 4
Pilot Dia. 2.000 - FEMALE
Flange Face To C/L 1.620 In.
Outside Yoke Dimension 4.438 In.
Yoke Bearing Dimension 1.188 In.
