Direct-fit Stage 1 Upgrade
485HP/362kW (flywheel) power capability (on-vehicle results)
47mm compressor inducer, 60mm compressor exducer
50mm turbine inducer, 45mm compressor exducer
Complete assembly with calibrated electric actuator and ancillary components for OE fitment.
17% flow increase over IS38 (stock Golf R turbo)
Turbocharger Data:
Compressor Inducer: 47mm
Compressor Exducer: 60mm
Turbine Inducer: 50mm
Turbine Exducer: 45mm
POWERMAX™ DIRECT FIT PERFORMANCE TURBOCHARGERS
2014 - 2018 Volkswagen / Audi 2.0L TSI Mk7 EA888
2017 - 2020 Volkswagen / Audi 2.0L TSI Mk7.5 EA888

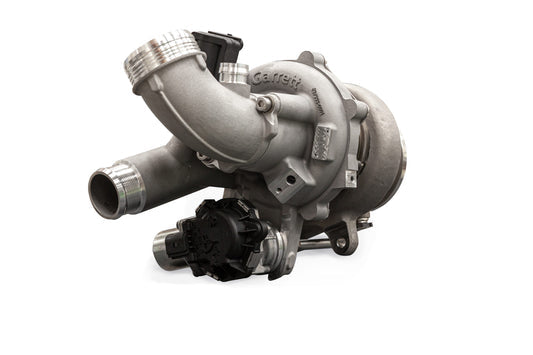

Garrett PowerMax™ turbocharger upgrades for the Volkswagen and Audi MK7 2.0L TSI engine platform is engineered to increase engine performance while maintaining OEM installation specifications. Stage 1 (485 FWHP*) and Stage 2 (600 FWHP*) upgrades maximize efficiency and air flow compared to the OEM turbocharger. High temperature, Mar-M alloy turbine wheel and twin scroll stainless steel turbine housings are rated for up to 1050° C. These turbochargers are fully assembled with a calibrated electronic actuator and ancillary components for direct OEM fitment.
WARNING: Maximum allowable turbocharger speed is 185krpm (Stage 1) | 165krpm (Stage 2). The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor port is machined into the compressor housing for the fitment of speed sensor part numbers 781328-0003(Includes sensor and gauge), and 781328-0004 (includes speed sensor). Speed sensors sold separately.
Stage 1 Power = 485FWHP / 326kW
Garrett PowerMax GT2260S
PN: 898199-5001W
Part Number: = G898199-5001W
Vehicle Applications:
Audi TT 2014 + Base 2.0L L4 - Gas IS20
Audi TTS 2014 + Base 2.0L L4 - Gas IS38
Audi A3 2015 - 18 Premium, Premium Plus, Prestige 2.0L L4 - Gas IS20
Audi A3 Quattro 2015 - 18 Premium, Premium Plus, Prestige 2.0L L4 - Gas IS20
Audi S3 2015 - 18 Premium Plus, Prestige 2.0L L4 - Gas IS38
VW Golf 2015 S, SE, SEL, Launch Edition 2.0L L4 - Gas IS12
VW Golf GTI 2015 Autobahn, S, SE 2.0L L4 - Gas IS20
VW Golf R Mk 7 2015 Base 2.0L L4 - Gas IS38
VW Golf R Mk 7.5 2017 Base 2.0L L4 - Gas IS38
VW Golf 2016 Base, S, SE, SEL 2.0L L4 - Gas IS12
VW Golf GTI 2016 Autobahn, S, SE 2.0L L4 - Gas IS20
VW Golf R 2016 Base 2.0L L4 - Gas IS38
VW Golf 2017 S, Wolfsburg Edition 2.0L L4 - Gas IS12
VW Golf Alltrack 2017 S, SE, SEL 2.0L L4 - Gas IS12
VW Golf GTI 2017 Autobahn, S, SE 2.0L L4 - Gas IS20
VW Golf R 2017 Base 2.0L L4 - Gas IS38
VW Golf 2018 S, SE, SEL 2.0L L4 - Gas IS12
VW Golf Alltrack 2018 S, SE, SEL 2.0L L4 - Gas IS12
VW Golf GTI 2018 Autobahn, S, SE 2.0L L4 - Gas IS20
VW Golf R 2018 Base 2.0L L4 - Gas IS38
OEM Turbocharger Applications:
IS12 06K124713L
IS20 06K145875M
IS38 06K145722H
