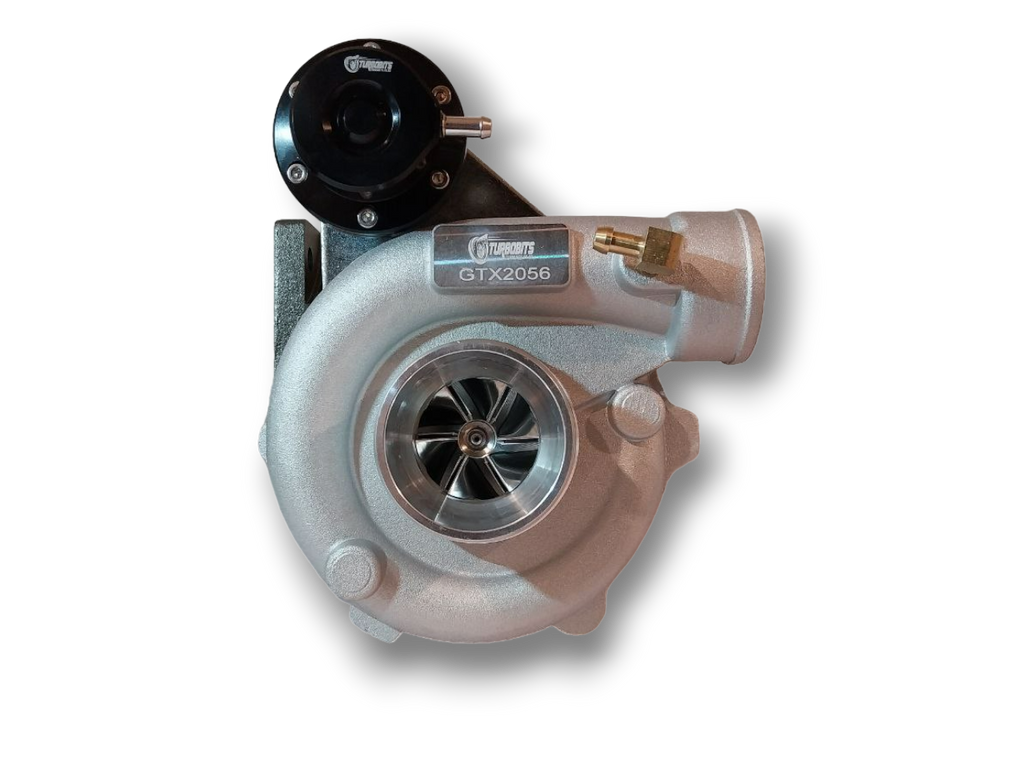

GTX2056 T25 Journal Bearing Turbo - A/R .49 - Billet Wheel

LHZ8795
In stock
$799.00
Additional charges will be calculated at checkout based on your delivery address.
$799.00
customers are viewing this product
GTX2056 T25 Journal Bearing Turbo - A/R .49 - Billet Wheel
Description

Brand New - Turbo Bits
Model: GTX2056 .49
Bearing System: Journal bearing
Flange: T25
Compressor: A/R .42
Turbine: A/R .49 - 76mm V-Band
HP Rating: 200-350hp
Engine size: 1100cc to 2000cc

More Details:

Featuring the updated generation 2 design,billet compressor wheel for a faster spool up. Better suited to smaller displacement 4 cylinder engines as a single turbo up to 2000cc Feel free to contact us to discuss the best set up for your application we have lots of different options and sizes in stock.

Model:

COMPRESSOR DETAILS:
A/R 0.42 compressor cover
Air inlet: 60mm (We have silicon joiners if required)
Air outlet: 2" or 51mm (We have silicon joiners if required)

Compressor Wheel Dimensions:
Inducer - 41.5 mm
Exducer - 56 mm

TURBINE DETAILS:
Turbine: A/R .49
Exhaust outlet: 76mm V-Band (Comes with clamp set)
Entry Flange: T25

Turbine Wheel Dimensions:
Inducer -47 mm
Exducer -40mm

TURBO DETAILS:
Brand New
Billet Compressor wheel, for faster spool up and stronger design
Bearing type: Journal bearing
Cooling type: Oil and water cooled - Can run oil cooled only but we recommend to run both
Horsepower: 140-260hp
Recommended Boost: 20psi
Max Boost: 30psi

Wastegate springs
White: 3.6-7.2psi
Green: 5.8-10.15psi (pre-installed)
Yellow : 8.7-14.5psi

ORDER TOGETHER AND SAVE

- Intercooler Kits
- Silicon Joiners
- Water fittings and water lines
- Oil fittings and Oil lines
- 38mm, 44mm or 60mm external V-Band wastegates
- Blow of valves BOV
- Adjustable Fuel Pressure regulator
- V-Band flange and clamp set
- T3 Manifold adapters
- T3 Flanges
- Fuel Pumps
- Turbo Beanies
- Heat Wrap
- Oil coolers
- Boost and vacuum line
+ Much more - Just ask
