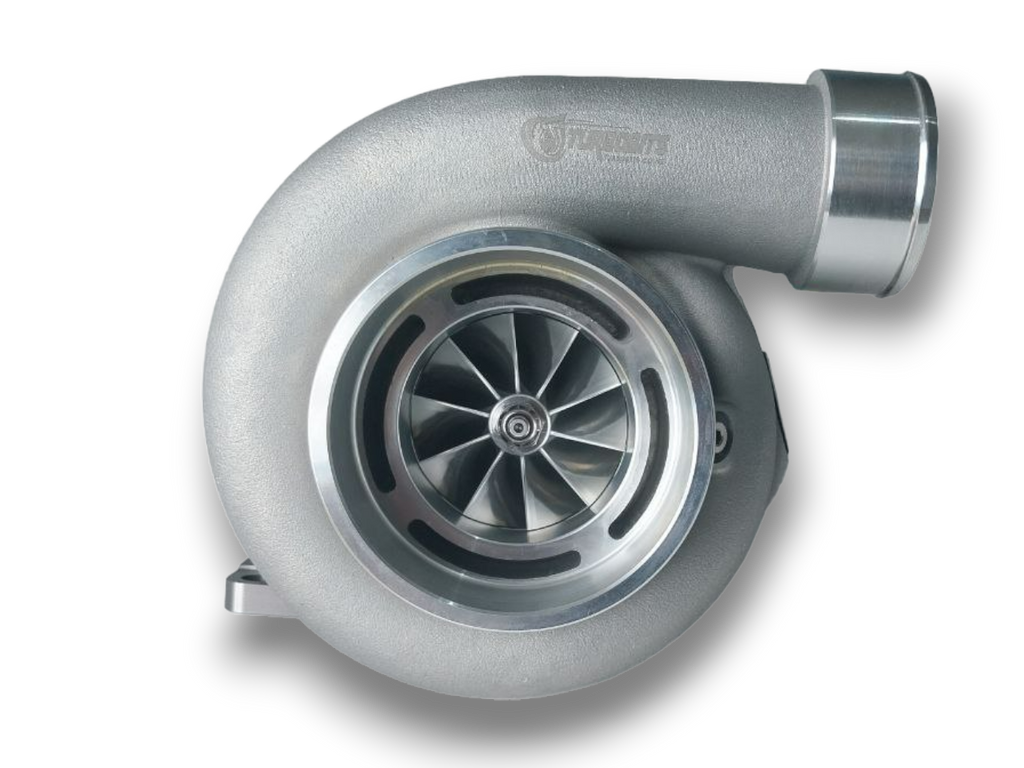

GTX3582R Gen 2 turbo - Faster Spool, Latest design

SKU: LHZ865

availability: In stock

$1,199.00
Additional charges will be calculated at checkout based on your delivery address.

Quantity

Subtotal: $1,199.00

Quantity must be 1 or more

1 customers are viewing this product

GTX3582R Gen 2 turbo - Faster Spool, Latest design

Description
Shipping + Returns

Description

Brand New - Turbo Bits
Model: GTX3582R Gen 2
Bearing System: Ball bearing
Flange: T3 or T4
Compressor: A/R .70 - Anti Surge
Turbine: A/R .82 or 1.06 - 90mm V-Band
HP Rating: 400-650hp
Engine size: 2000cc to 3500cc

More Details:

Great alternative to a Manifold flange adaptor, smallest T4 turbo available for faster spooling applications. Featuring the updated generation 2 design, dual ceramic ball bearing system for a faster spool up. With the A/R .82 exhaust housing it better suited to smaller displacement 4 and 6 cylinder engines as a single turbo up to 3500cc, as a V8 twin turbo, up to 7000cc. Feel free to contact us to discuss the best set up for your application we have lots of different options and sizes in stock.

Model:
GT35 GT3540 GT3582 GTX3582R

COMPRESSOR DETAILS:
A/R 0.70
Anti Surge compressor cover
Air inlet 4.00" (We have silicon joiners if required)
Air outlet: 2.50" (We have silicon joiners if required)

Compressor Wheel Dimensions:
Inducer - 61.40mm
Exducer - 82.00mm

TURBINE DETAILS:
Turbine: A/R 0.82 or 1.06
Exhaust outlet: 90mm V-Band
Entry Flange: T3 or T4

Turbine Wheel Dimensions:
Inducer - 67.85mm
Exducer - 62.30mm

TURBO DETAILS:
Brand New
Billet Compressor wheel, for faster spool up and stronger design
Anti Surge
Bearing type: Ceramic ball bearing
Cooling type: Oil and water cooled
Horsepower: 400-650hp
Recommended Boost: 20psi
Max Boost: 30psi
Warranty: 12 Months - See Terms

ORDER TOGETHER AND SAVE

- Intercooler Kits
- Silicon Joiners
- Water fittings and water lines
- Oil fittings and Oil lines
- 38mm, 44mm or 60mm external V-Band wastegates
- Blow of valves BOV
- Adjustable Fuel Pressure regulator
- V-Band flange and clamp set
- T3 Manifold adapters
- T3 Flanges
- Fuel Pumps
- Turbo Beanies
- Heat Wrap
- Oil coolers
- Boost and vacuum line
+ Much more - Just ask
