Spicer Midship Stub Shaft 1310/1410 (3.0" x .083" Tube)

v1|296607584880|0
In stock
$214.99
Additional charges will be calculated at checkout based on your delivery address.
$214.99
customers are viewing this product

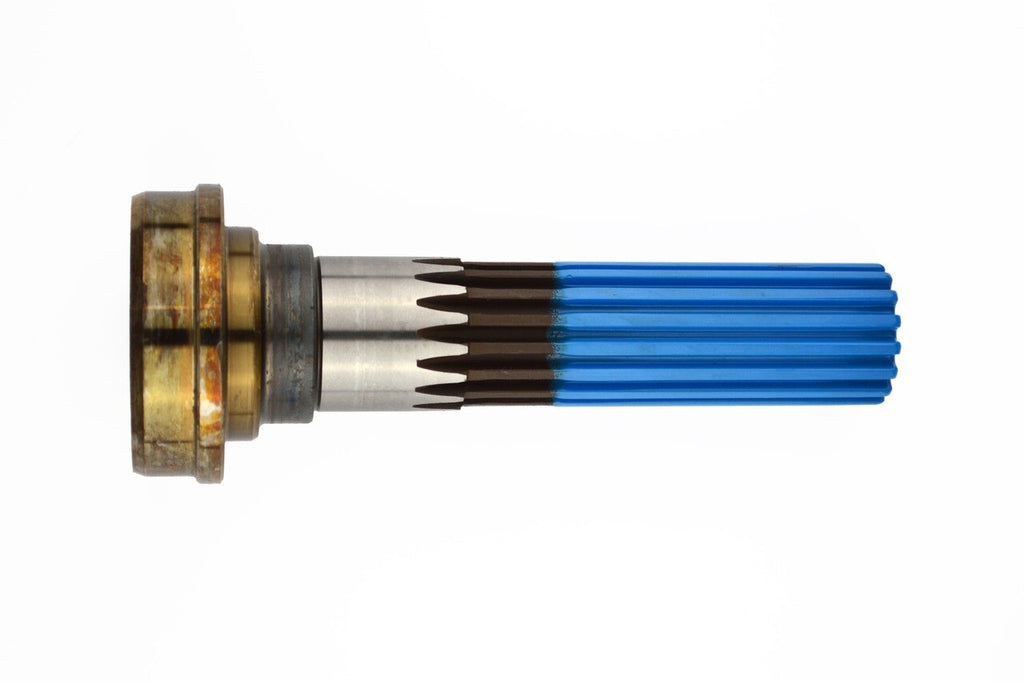

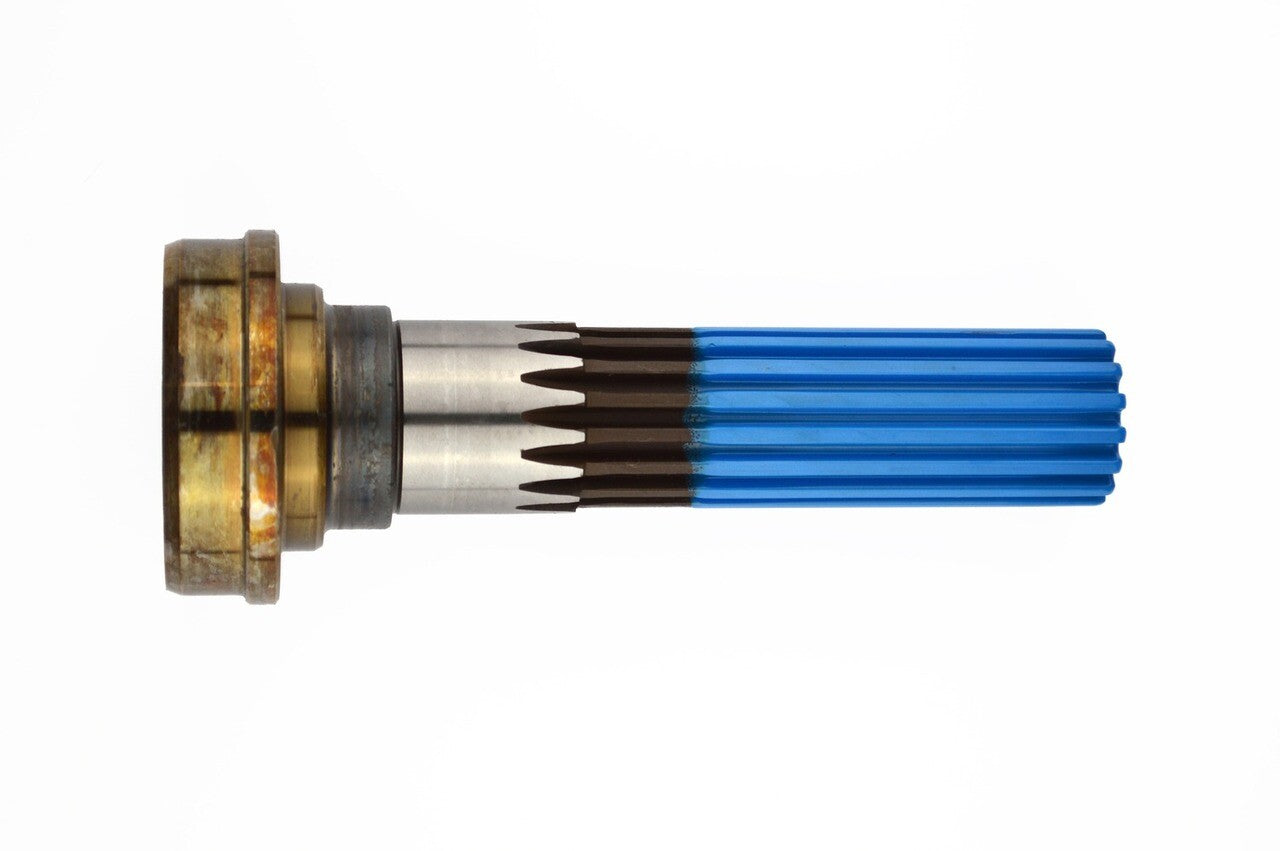

Spicer Midship Stub Shaft 1310/1410 (3.0" x .083" Tube)
Description

The Midship Stub Shaft 1310-1410 Tube is designed for use with outboard slip yoke series 1310-1410. This product is made from high-quality steel and features a spline outer diameter of 1.5000 inches with 16 involute splines. The tube diameter is 3 inches and the wall thickness is 0.083 inches. Key measurements include a spline end to bearing shoulder of 5.940 inches, spline end to weld of 7.062 inches, and a spline length of 4.438 inches. The shoulder diameter is 1.810 inches and the shoulder length is 0.875 inches. The bearing diameter is 1.575 inches, and the VMRS code is 024002060 with a butt diameter of 2.845 inches.
