PEUGEOT, Land Rover DEFENDER Station Wagon (L316), BOXER Box 2006-, 1990-2016 4HU 4HV P8FA QVFA QWFA SRFA PUMA 908867 4HU 4HV P8FA QVFA QWFA SRFA PUMA Engine Cylinder Head for Ford Transit 2.2 FWD Ranger Peugeot Boxer – OEM 908867

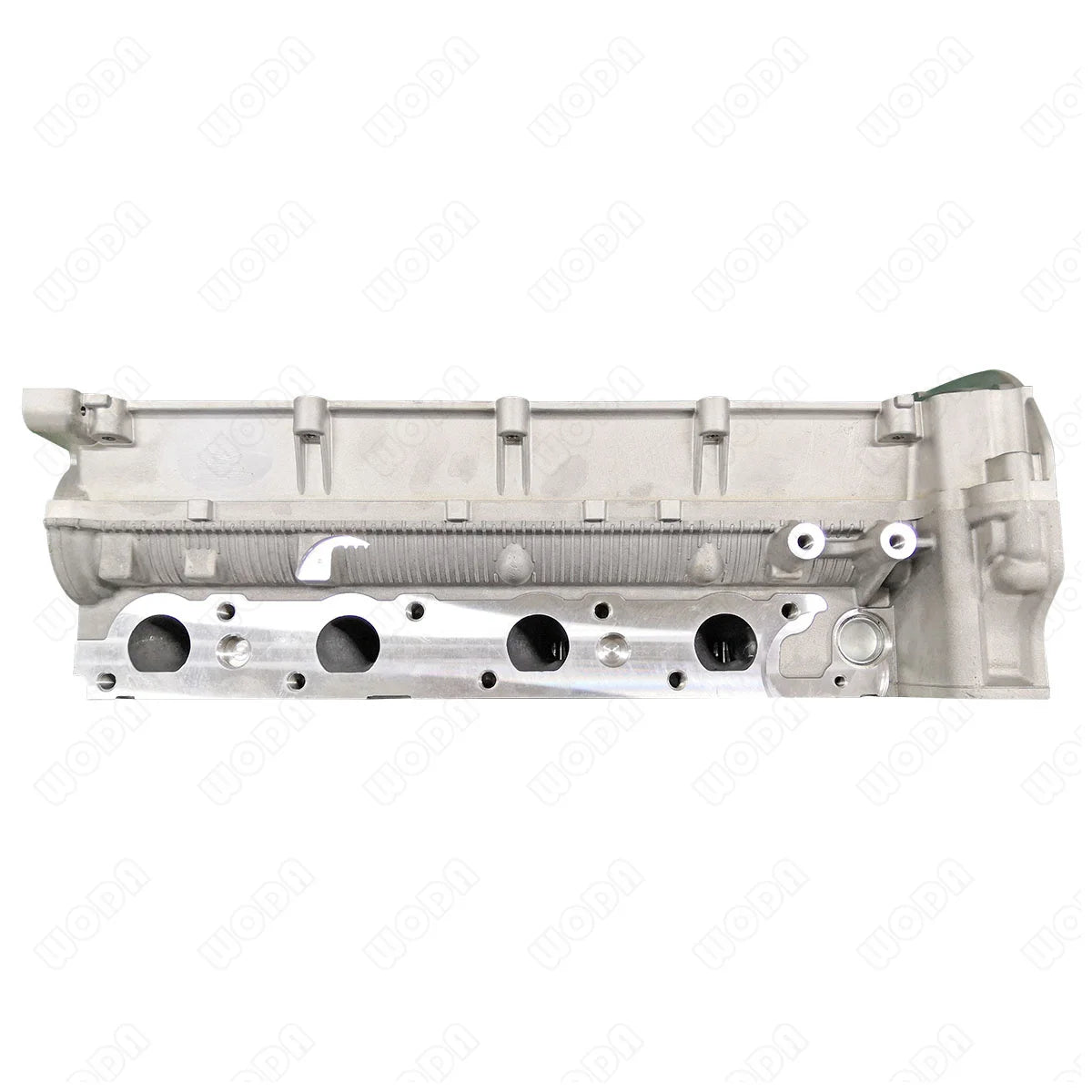

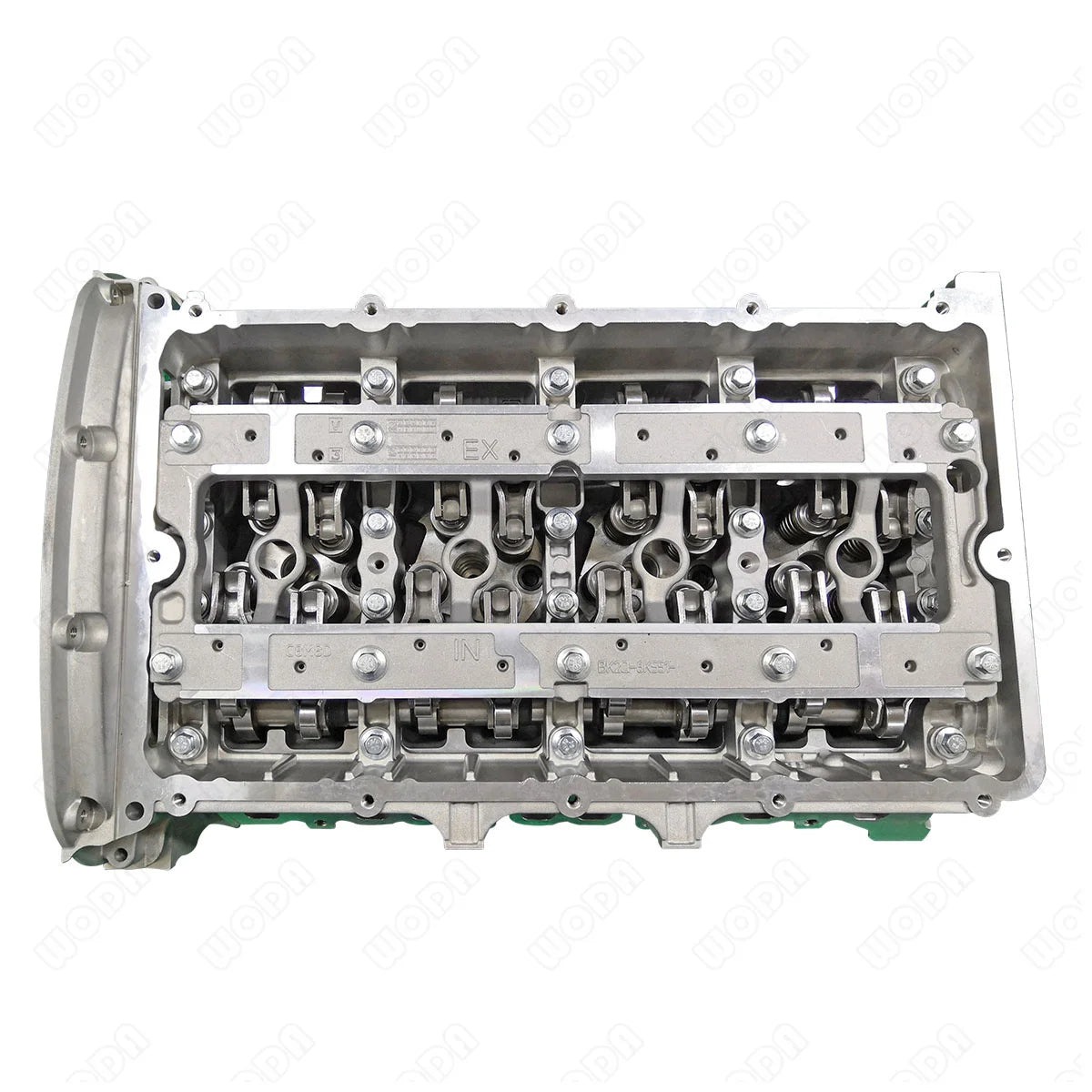

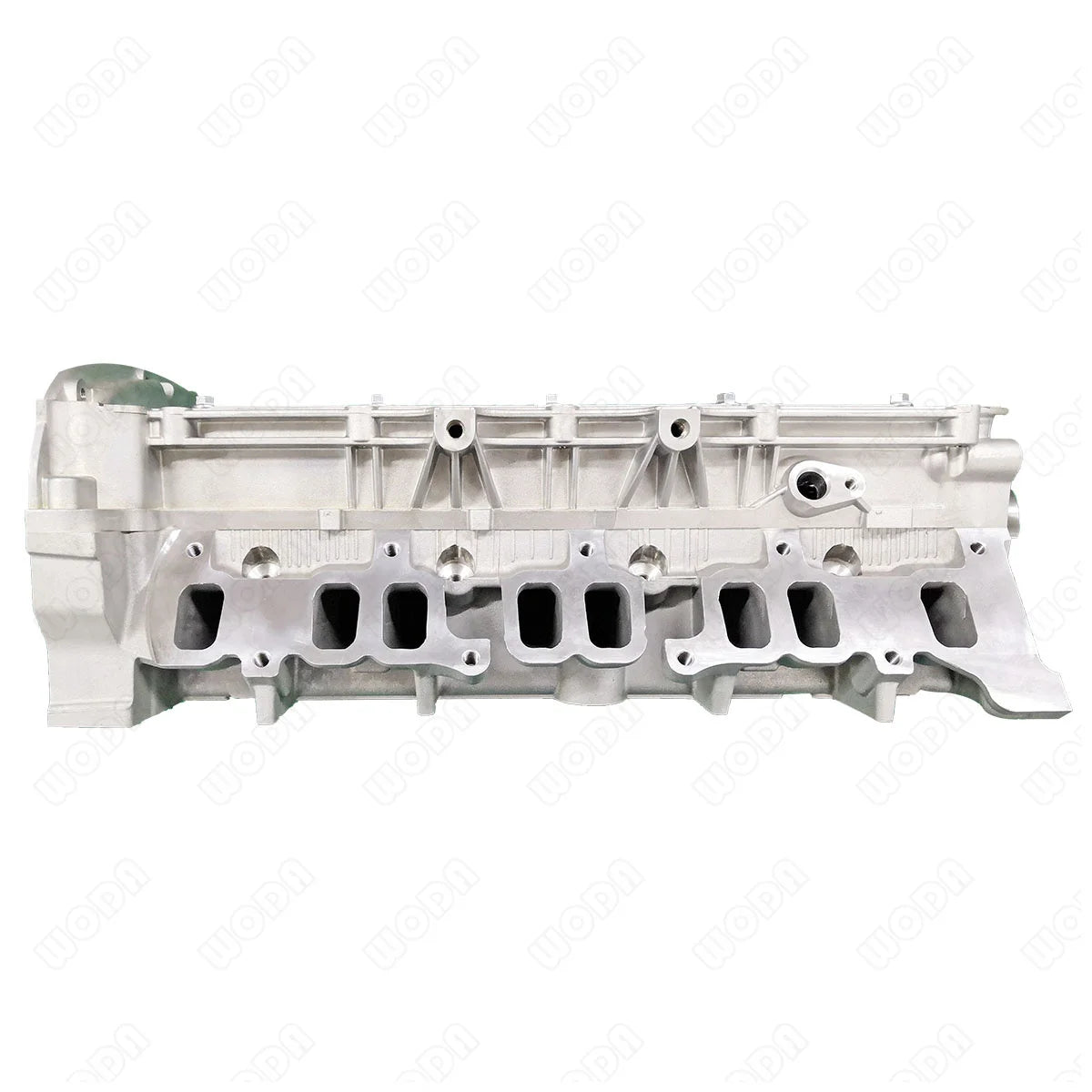

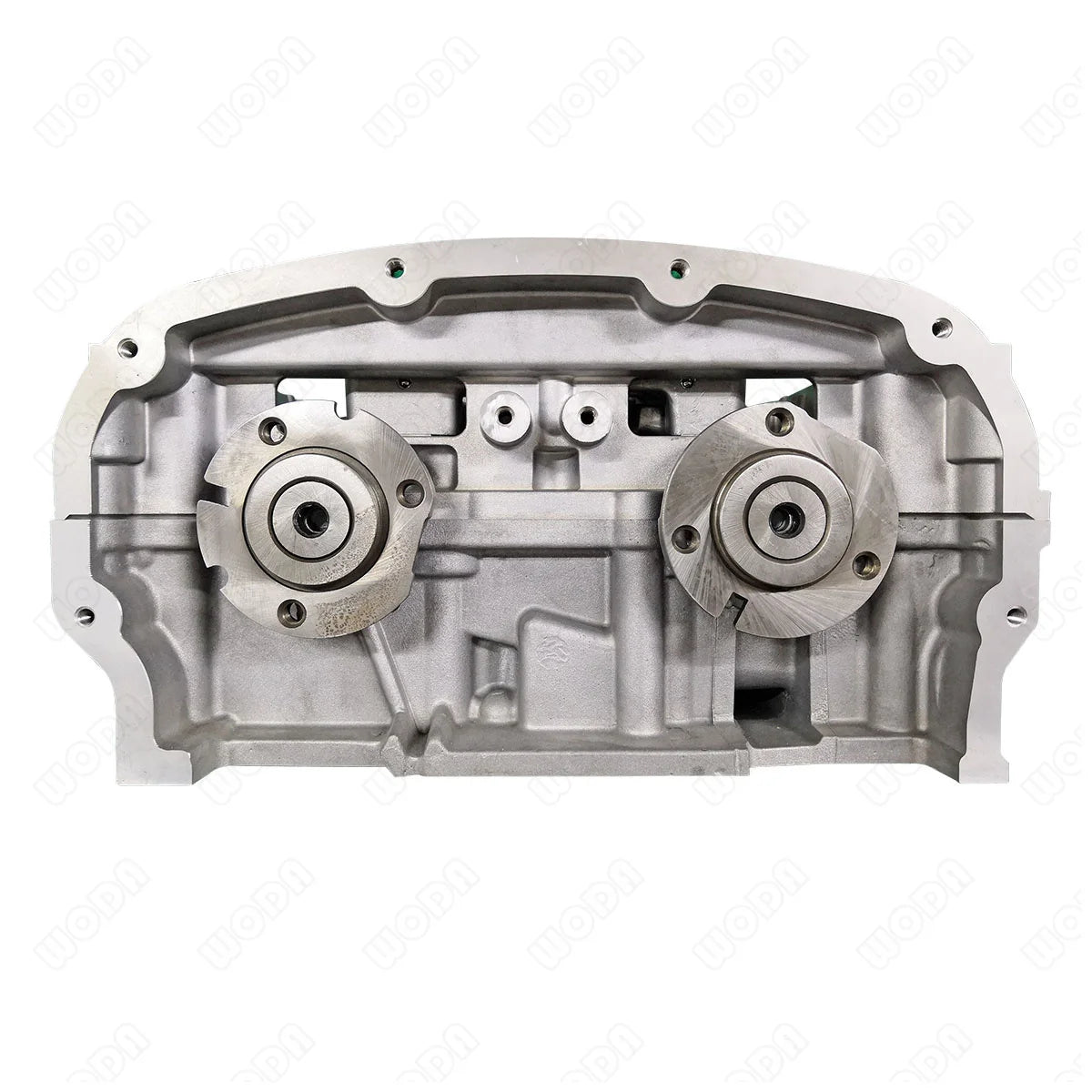

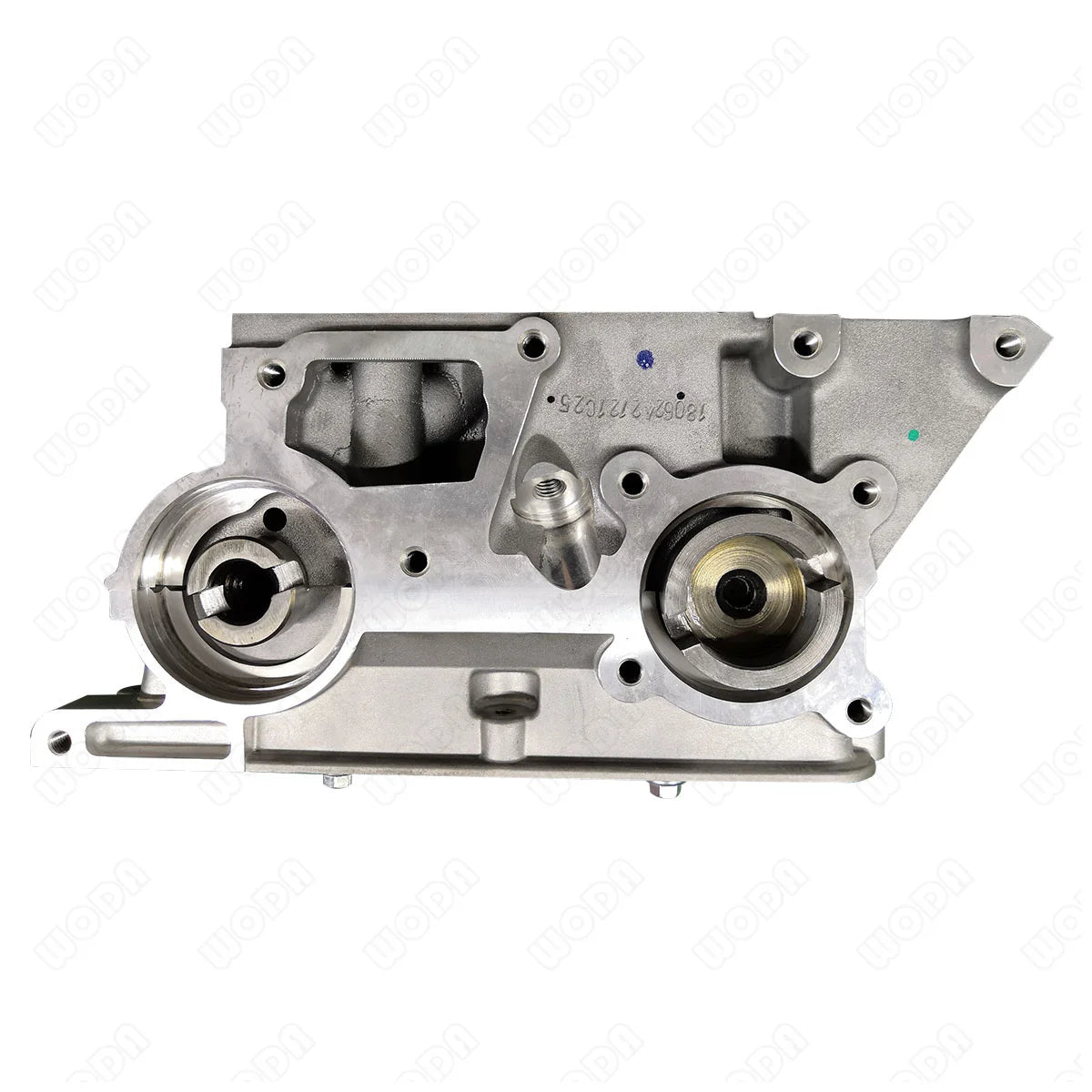

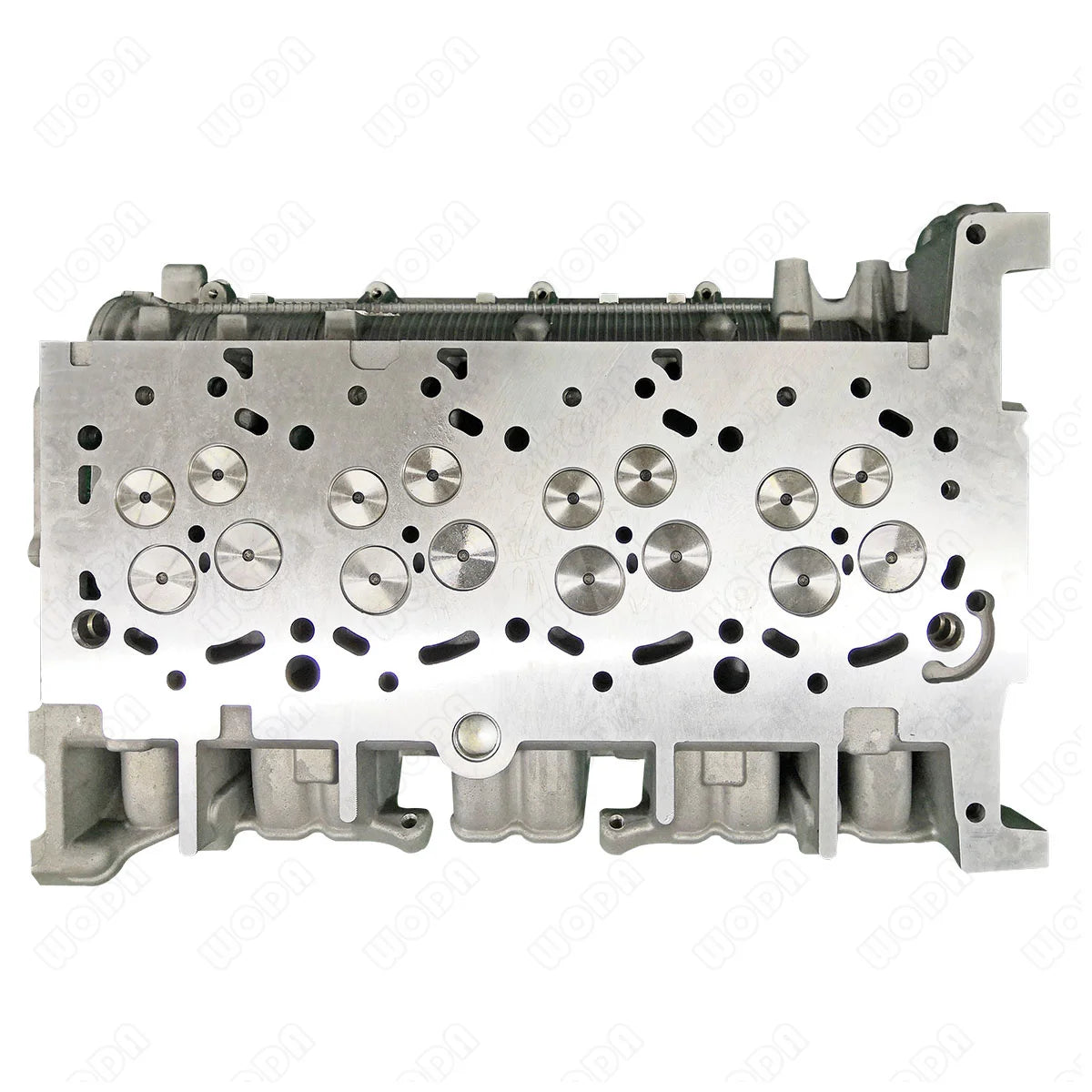

Product Overview: This complete cylinder head assembly is a direct-fit replacement for 4HU, 4HV, P8FA engines, supplied fully assembled and ready to install. It replaces the original casting on Peugeot, Land Rover applications and restores correct combustion chamber geometry, valve sealing and gas flow without additional machining. Each unit is pressure tested before packing and carries a 12-month warranty. It is intended for replace/repair use and is a cost-effective alternative to reconditioning a damaged original head. The unit is inspected for flatness and gallery cleanliness prior to dispatch, ensuring it is ready for immediate fitment.

Key Features: The head is CNC-machined from High-Strength Cast Iron to deliver consistent deck flatness, accurate valve seat concentricity and correctly sized ports. Valve guides and seats are pre-installed and finish-honed, and combustion chamber volumes are matched cylinder to cylinder for balanced compression and a stable idle. Reinforced casting walls around the valve bridge and injector or plug bosses improve thermal durability, while the machined cam carrier maintains correct bearing clearance.

Vehicle Compatibility: This assembly fits make; model; year; engine. Always confirm the engine code and reference number against the original component before ordering, as several variants and market build codes use visually similar heads.

Specifications: Engine code / family: 4HU, 4HV, P8FA; Displacement: 2.2 L; Cylinder configuration: Inline-4; Valve train: DOHC 16V; Material: High-Strength Cast Iron; Size: STD; Surface treatment: Heat Treated Valve Seats / Nitrided Cam Journals; Condition: New, supplied for replace/repair use; Warranty: 12 Months; Certification: ISO 9001 / IATF 16949; Packaging: neutral export carton.

OEM / Reference Numbers: Primary reference numbers for this head include 908867, 1433147, 71724181, 9662378080, 22100-2B725, 6C106C032AA. Cross-reference these with the casting marks and engine code on the original cylinder head to confirm the correct variant.

Applications: Suitable for passenger cars, light commercials and utility vehicles built on Peugeot, Land Rover platforms, covering workshop repairs, engine overhauls and fleet maintenance where a factory-specification casting is required.

Benefits / Replacement Information: Fitting this complete assembly restores lost compression, eliminates coolant loss and combustion gas transfer caused by a failed head or gasket, and removes the cost of separately reconditioning valves, guides and seats. Because the unit arrives assembled and tested, downtime and labour are reduced compared with repairing an original casting.

Installation or Fitment Notes: Before fitting, clean and inspect the block deck and bolt threads, check the head for flatness and confirm the gasket, bolt set and torque sequence specified for the engine. Fit new head bolts where stretch bolts are used, follow the tightening stages and angles precisely, and refill with the correct coolant. Run the engine to temperature, then re-check coolant level and re-torque if required.
