Spicer 250-53-11 Midship Tube Shaft

v1|294988916082|0
In stock
$422.99
Additional charges will be calculated at checkout based on your delivery address.
$422.99
customers are viewing this product
Spicer 250-53-11 Midship Tube Shaft
Description

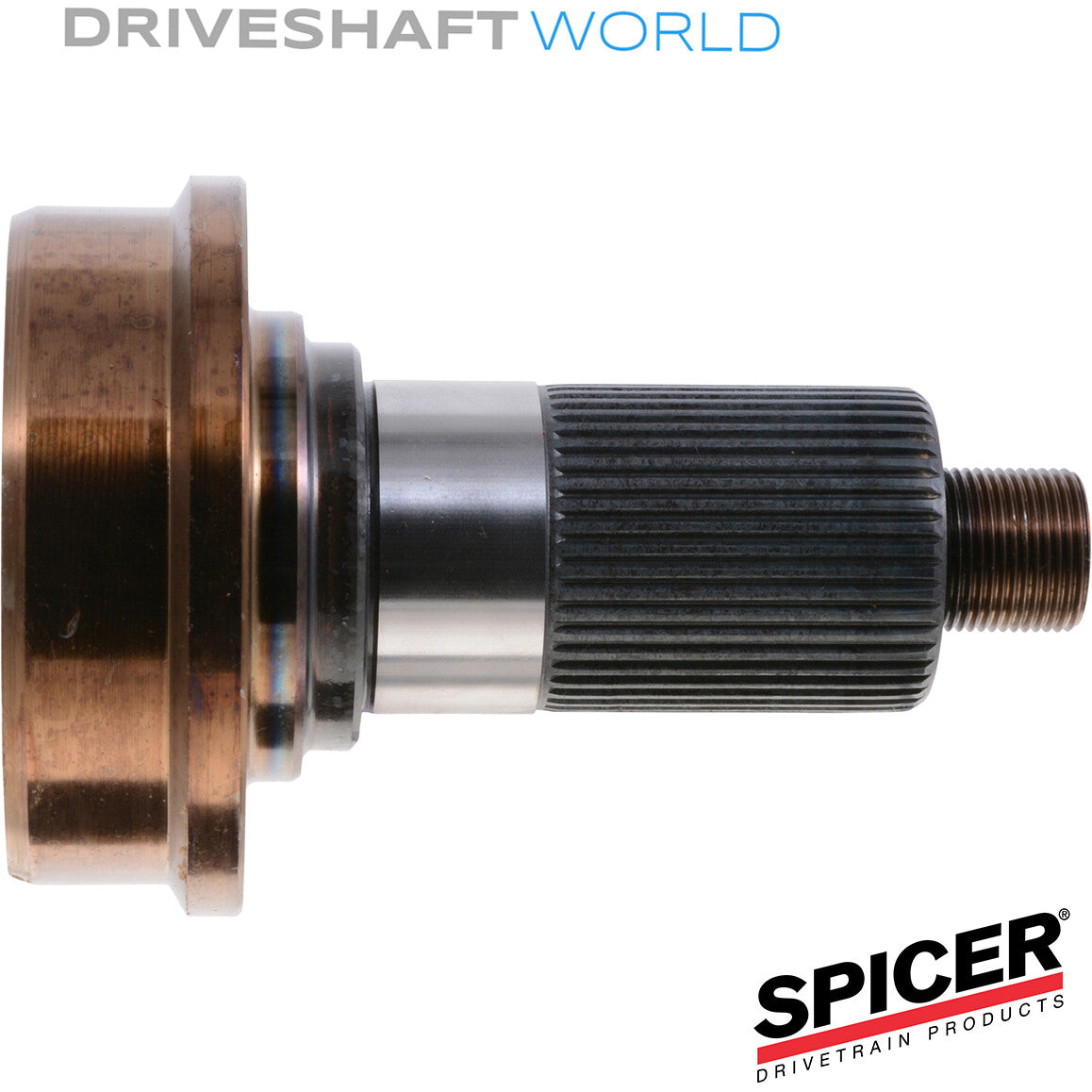

The Splined Midship Tube Shaft 2.350x46 Spline, 5.197 x .157 Tube is a high-quality component made in the USA by Spicer. It is designed for use with an end yoke or companion flange series SPL250. This shaft features a spline outer diameter of 2.350 inches and has 46 splines.

Specifications

Specification Value
Spline O.D. 2.350 inches
Number Of Splines 46
Fits Tube Diameter 5.197 inches
Fits Tube Wall .157 inches
Spline End To Brg Shoulder (Y) 3.980 inches
Spline End To Weld (K) 5.291 inches
Spline Length (L) 2.618 inches
Thread Size M30X2-6G
Shoulder Diameter (B) 2.886 inches
Shoulder Length (G) .812 inches
Bearing Diameter (C) 2.362 inches
Butt Diameter 4.746 inches
Style 2
Bearing Diameter (Max) 2.3622 inches

Fitment

Year Make Model Notes

Key Features

  • Made in USA
  • For use with end yoke or companion flange series SPL250
  • Material: Steel
