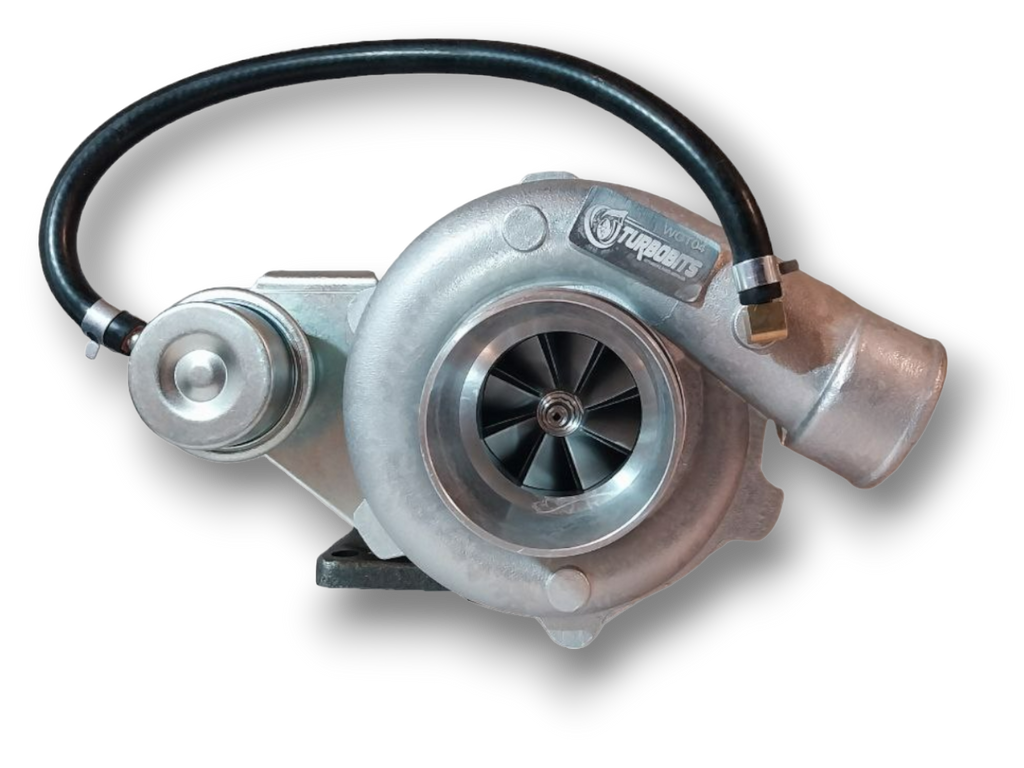

TBR T3T4 T04E Turbocharger – Journal Bearing | Internal or External Wastegate | V-Band or 5-Bolt A/R .63
Click to zoom in
Load image into Gallery viewer, TBR T3T4 T04E Turbocharger – Journal Bearing | Internal or External Wastegate | V-Band or 5-Bolt A/R .63

Have Questions? Call Us Now

+61275010174

  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Added Value

    Mounting, Balancing

  • Free Delivery

    For selected products

TBR T3T4 T04E Turbocharger – Journal Bearing

YUM5636
In stock
$390.43
Additional charges will be calculated at checkout based on your delivery address.
$390.43
customers are viewing this product
TBR T3T4 T04E Turbocharger – Journal Bearing
Description

Get the most out of your boosted build with the TBR T3T4 T04E Turbocharger, featuring a journal bearing system, A/R .50 compressor, and A/R .63 turbine for optimized airflow and turbo response. Ideal for petrol engines between 1600cc to 3200cc, this turbo supports 250 to 400 horsepower and is a go-to upgrade for street and strip builds alike.

This unit is versatile with its dual wastegate setup—run it internally gated out of the box or remove the internal flap for external wastegate use. It also includes a V-Band adapter, allowing for simplified and leak-resistant downpipe installation, or you can opt for the standard 5-bolt T04E flange.

Whether you’re running a single-turbo setup or building a twin-turbo monster, this unit is built to handle the heat—with oil cooling, a tough cast build, and up to 14.5 PSI internal gate preload right out of the box.

Key Features & Benefits

Supports 250–400 HP on 1.6L–3.2L petrol engines (up to 800HP in twin-turbo setups)
Journal Bearing System – proven reliability under pressure
Compressor A/R .50 and Turbine A/R .63 – strong mid-to-high RPM performance
Flange Compatibility – Standard T3 turbo manifold flange
Dual Wastegate Setup – Run internal or remove flap to go externally gated
Includes V-Band Adapter for 2.5” I.D. or use 5-bolt downpipe
Oil-Cooled Only – simple and reliable cooling solution

Technical Specifications

Specification Details
Model T3T4 T04E
Brand TBR
Bearing Type Journal
Compressor A/R 0.50
Turbine A/R 0.63
Compressor Inducer / Exducer 54mm / 70mm
Turbine Inducer / Exducer 56mm / 65.2mm
Turbo Flange (Manifold) T3
Turbo Flange (Downpipe) 2.5" I.D. V-Band or T04E 5-bolt
Compressor Inlet / Outlet 3” / 2”
Cooling Oil-cooled only
Internal Wastegate Setting 14.5 PSI / 1 Bar
Recommended Displacement 1.6L – 3.2L (or twin 3.2L – 6.0L)
Horsepower Rating 250–400 HP (single), up to 800 HP (twin)
Application Universal fit (consult pro installer)



What’s Included

  • 1x TBR T3T4 T04E Turbocharger

  • Internal Wastegate Installed (removable)

  • V-Band Adapter & Gaskets

  • Oil Cooled Journal Bearing Center Section

  • Universal Fitment – Installer Consultation Recommended
