TCC08 8 Channel EGT to CAN Module

Link TCC08 8 Channel EGT to CAN module, powered by CA Nchecked The TCC08 EGT to CAN module allows you to connect up to eight Type-K thermocouples and send the values ​​via CAN bus and/or monitor them directly on your wireless enabled device. Type-K thermocouples are suitable for various applications such as measuring exhaust gas temperature (EGT), temperatures before/after the intercooler, turbo housings, cylinder head temperatures, water temperature, oil temperature and more. All measurements are cold junction compensated with a measuring range of 0 to 1250°C in 0.25°C resolution (14bit). The TCC08 features a four-pin DTM connector for CAN/power and miniature K-sockets. It is pin compatible with Links standard CAN pinout and CAN cables range. CAN 2.0A/B standard is supported with flexible configuration. Wireless connectivity allows you to configure and update your module via smartphone or PC and query the current temperature and thermocouple status. Features:8 x cold junction compensated type-K inputs Four-pin DTM connector & miniature K-sockets. CAN Bus connection to ECU (Pre-Configured for Link ECU) Measuring range from 0 to 1250°C (32 to 2282°F) with 0.25°C resolution Detection of short circuit to ground or if no type-K is connected Standard mini k thermocouple connector Full configuration and monitoring over wireless Adjustable sample frequency up to 100Hz

What's included:

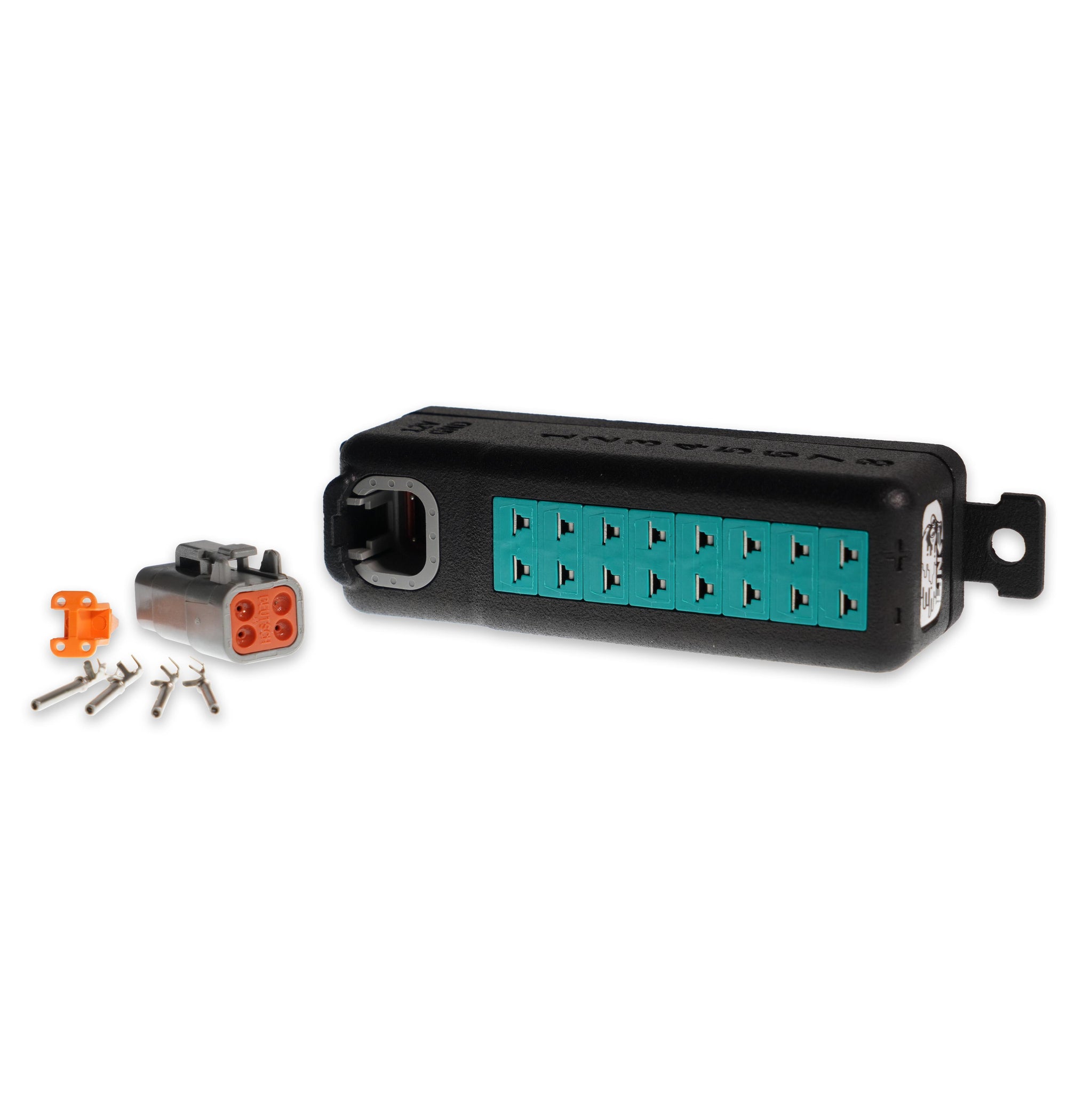

• :1 x CAN EGT Module1 x DTM4 Mating Connector Kit2 x Link Stickers Set-up and Installation Guide

EGT probes are typically installed into the exhaust manifold or up-pipe of each cylinder or bank, close to the exhaust port, to give the most representative reading of that cylinder's combustion temperature. A CAN-based EGT module allows multiple probes to be read and sent to the ECU over a single CAN connection, keeping wiring simple even on a multi-channel install. Monitoring EGT is particularly useful on turbocharged, high-boost or aggressively tuned engines, where excessive exhaust temperature can be an early warning sign of a lean mixture or retarded ignition timing. This sensor is genuine Link Engine Management equipment, supplied by AutoCentre Parts New Zealand for use with compatible Link ECU systems. Accurate sensor input is essential for reliable ECU tuning and engine protection, so we recommend using genuine Link sensors alongside your Link ECU wherever possible.
